Digital Bursting Strength Test Machine TNJ-038

Place of Origin : Donggguan

Brand Name : Tony

Model Number : TNJ-038

Packaging Details : WOODEN PACKAGE

Delivery Time : WITHIN 30 DAYS

Payment Terms : T/T

Supply Ability : 300pcs/year

Contact Now

The bursting strength tester is used for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike, valise, food, shoe, furniture etc, to test the bursting-resistance strength of paper box; it can also test cloth and synthetic leather. The bursting strength tester is adapted with signal output of pressure. While specimen is breaking, the max. breaking value will be kept with the alarm buzzer & alert light automatically. Its accuracy has promoted 20 times more than the traditional gauge.

This Bursting Strength Tester Technical Parameters:

capacity(optional)

high Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)

unit

Kpa, psi, kg/cm^2

accuracy

± 0.5%

pressure Range

250~5600kpa

specimen Clamping Force

>690kpa

oil

5% Glycerin; 15% Distilled Water

sensing method

pressure Transmitter

indicating Method

digital

display

LCD

material of the Ring

stainless steel SUS304

opening in upper clamp

31.5 ± 0.05 mm Diameter

opening in lower clamp

31.5 ± 0.05 mm Diameter

motor

Anti-vibration Motor 1/4 HP

operation Method

semi-automatic

power supply

1ø, AC220± 10%, 50 Hz; 120W

standard Configuration

Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle

standards

JIS-L1004, L1018, L1031, K6328, P8131, P8112,ASTM-D2210; TAPPIT403TS-63

ISO2759-2001; GB/T1539


Product Tags:

bursting strength tester



burst strength tester



burst strength test


Quality Digital Bursting Strength Test Machine TNJ-038 wholesale

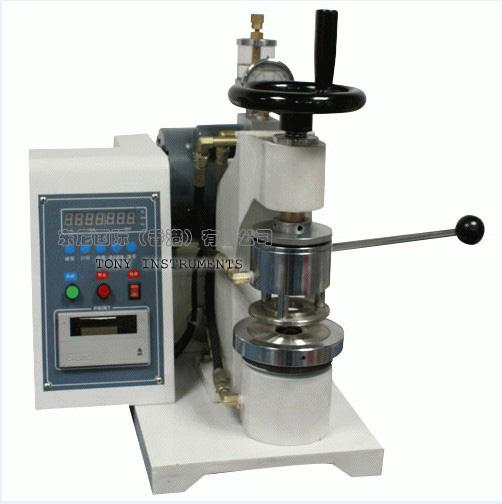

Digital Bursting Strength Test Machine TNJ-038 Images
